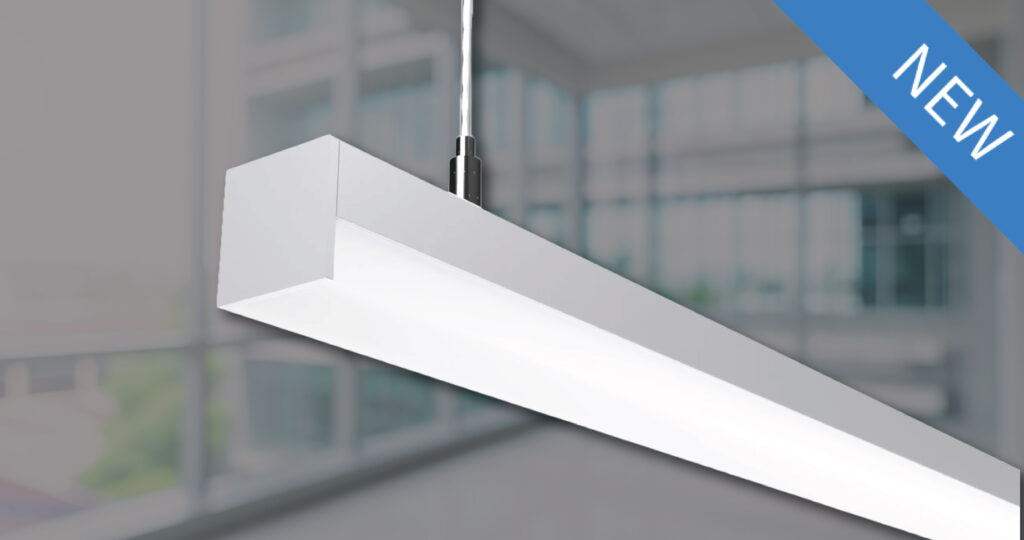

ALANI
Alani is an architectural-grade LED fixture designed for surface-mounted or suspended applications. Constructed from high-quality aluminum, it provides superior thermal management to support higher wattages and extend the overall lifespan of the lighting system. Alani features a patented frosted diffuser that delivers maximum lumen output with wide, uniform beam distribution, along with three lens shape options—including rounded and extended lenses—for added design flexibility.
Â
TYPE INPUT VOLTAGE POWER CONSUMPTION LENS LENS OPTION AVAILABLE LENGTHS MAX RUN LENGTH FINISH TRANSFORMER CRI | Surface | Suspended 24V DC 3.5W | 5W | 7W Frosted Standard, Round, Extended 49″ | 98″ 20 Ft. (Surface) | 8 Ft. (Suspended) Black | White | Silver Remote 95+Â |
ALANI
Surface/ Suspended LED Profile System
Architectural-grade LED fixture designed for surface-mounted or suspended applications. Constructed from high-quality aluminum, it provides superior thermal management to support higher wattages and extend the overall lifespan of the lighting system. Alani features a patented frosted diffuser that delivers maximum lumen output with wide, uniform beam distribution, along with three lens shape options—including rounded and extended lenses—for added design flexibility.
QUICK SPECS
| Type | Surface / Suspended |
| Input Voltage | 24V DC |
| Power Consumption | 3.5W / 5W / 7W |
| Lumen Output | 307 Lm/ Ft. (3.5W) | 596 Lm/ Ft. (5W) | 802 Lm/ Ft. (7W) |
| Lens | Frosted |

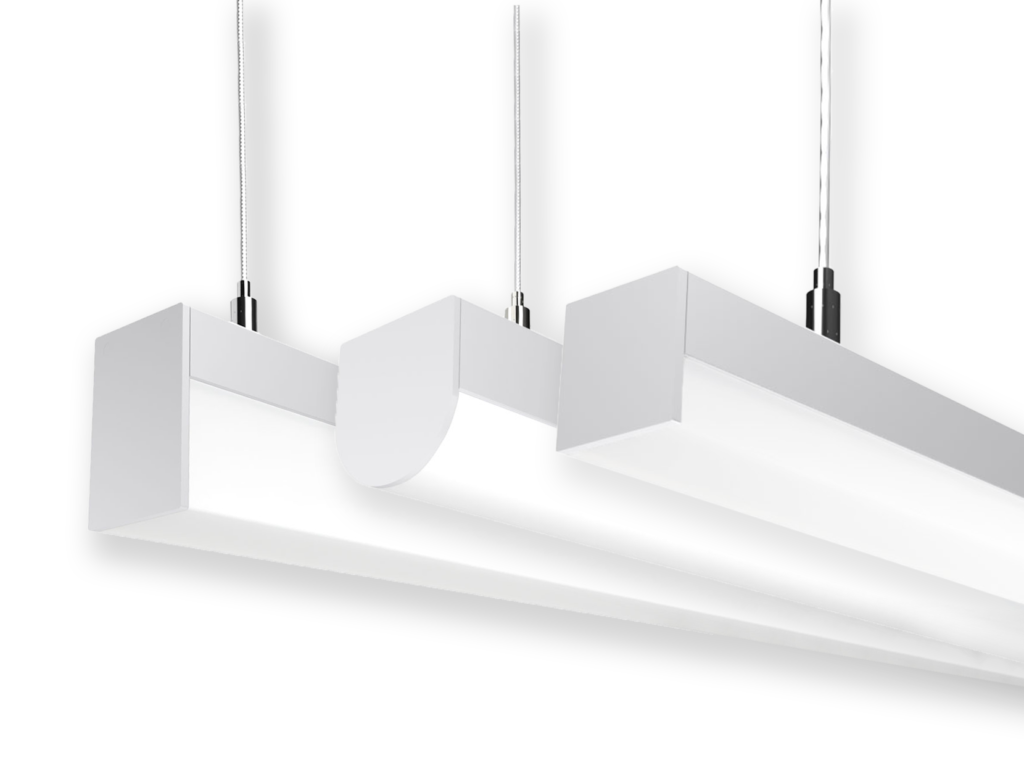

| Lens Option | Standard, Round, Extended |
| Available Lengths | 49″ & 98″ |
| Max Run Length | 20 Ft. (Surface) | 8 Ft. (Suspended) |
| Dimming | TRIAC, 0~10V, DMX, Lutron |
| Finish | Black, White, Silver |
| Transformer | Remote |
| CRI | 95+ |
| Operating Temp | -40ÂşF (-40ÂşC) ~ 140ÂşF (60ÂşC) |
| Rating | Indoor (Dry/ Damp Location) |
FEATURES
Key Features
Â
- Versatile Mounting: Surface and suspended mounting options, enabling seamless adaptation to various architectural and design requirements.
- Color Temperature Flexibility: Multiple color temperature options (27K-50K), allowing you to customize the lighting ambiance to suit various environments and moods.
- Dynamic Color Control:Â Full range RGB + White capabilities allow for a vast spectrum of color options and precise white light tuning, enabling versatile lighting designs.
- Accurate Color Representation:Â Superior Color Rendering Index (CRI) ensures colors appear natural and vibrant, enhancing the visual appeal of illuminated spaces.
- Environmental Protection:Â Shields LED systems from dust, debris, and other environmental factors, enhancing longevity and reliability.
- Safety and Reliability: UL Listed (US and Canada) certification, ensuring the product meets relevant safety standards.
- Â
Ideal Applications
- Commercial Spaces: Enhances offices, conference rooms, and retail environments with clean, professional lighting.
- Residential Settings: Adds sophistication to kitchens, hallways, and living areas with sleek, recessed lighting.
- Public Venues: Perfect for lobbies, galleries, and hospitality spaces requiring uniform and stylish illumination.
- Continuous Runs: Ideal for applications needing seamless light across extended lengths, ensuring a polished look.

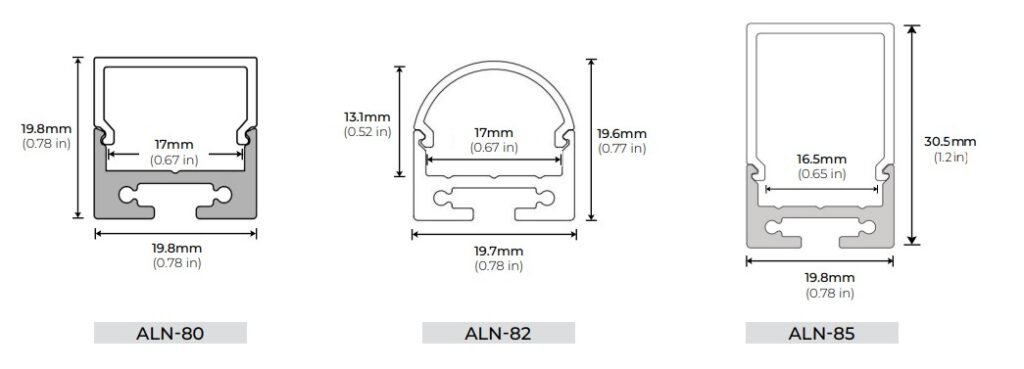

DIMENSIONS
