SAFIRE-70
7W DESIGNER SERIES LED TAPE LIGHT
Heading #2 | |
|---|---|
POWER CONSUMPTION | 7W per Ft. |
LEDS/ FT. | 80 LED per Ft. |
LUMEN OUTPUT | 577 ~ 804 Lumens per Ft. |
CRI | 95+ |
DIMMING | TRIAC, MLV, ELV, 0-10V |
MAXIMUM RUN LENGTH | 15 Ft. |

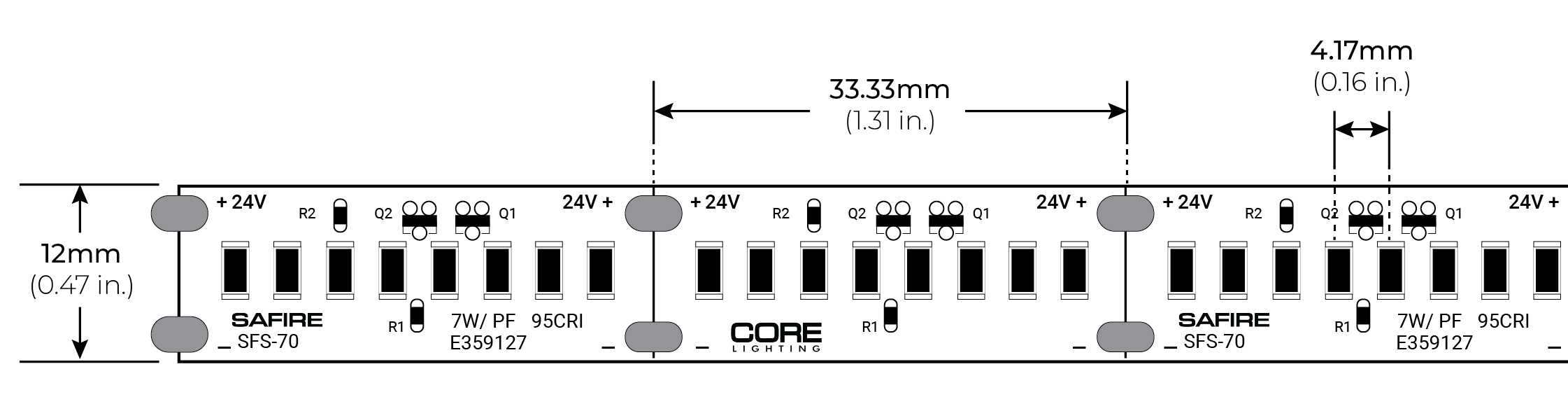

CUTTABLE | Every 1.31 in (33.3mm) |
BINNING | 1.5-Step MacAdam Elipse |
OPERATING VOLTAGE | 24V DC |
OPERATING TEMPERATURE | -22°F (-30°C) to +122°F (+50°C) |
RATING | Indoor(IP20) |
LUMEN MAINTENANCE | 50,000 Hrs. |
SPEC SHEET
FEATURES
DIMENSIONS
IES FILES
INSTALLATION GUIDE
