LSM75HF High Output Flexible LED strip is designed to produce more than 784 Lumens at 7.0 Watts per foot. This field cuttable LED strip features a low profile design that allows it to be attached almost anywhere. It is suitable for most common lighting applications. The LSM75HF produces a 120° light beam spread and is available in different color temperatures to fit your specific needs. UL listed.
■ 7W per Foot
■ 784 Lumens
■ 95+ CRI
■ California TITLE 24 JA8 compliant
■ High efficacy level
■ Suitable for accent or ambient lighting
■ Multiple CCT options available
■ Superior COLOR RENDERING INDEX (CRI)
■ Available in 24V
■ Dimmable with CORE Lighting dimmable drivers
24V DC
7W per foot
784 Lumens per foot
72 LEDs per foot
120º Beam Spread
95+ CRI
MLV, ELV, 0-10 and TRIAC
Maximum run length: 20 Feet
Cuttable every 1.3 in
IP54 dry location only (indoor rated)
50,000 hrs. rated lifespan
Operating Temp: -40ºF(-40ºC)~+140ºF(+60ºC)
1.5 Step Macadam Elipse
UL listed, TITLE 24 JA8

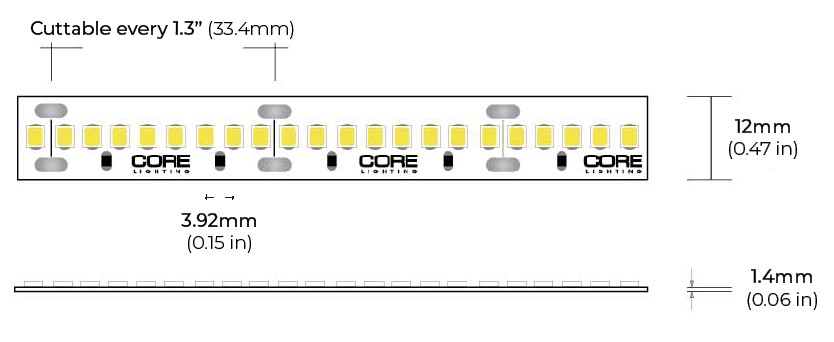

Dimensions: 0.47” x 0.06 (width x height)
LSM75HF Super High Output strip is designed to produce more than 784 lumens at 7.0 Watts per foot. This field cuttable LED strip features a low profile design that allows it to be attached almost anywhere. Installation is quick and easy. The LSM70HF is great for many common lighting applications, such as cove lighting or cabinets. It produces a 120° light beam spread and is available in different color temperatures to fit your specific needs.
■ 7W per Foot
■ 784 Lumens
■ 95+ CRI
■ California TITLE 24 JA8 compliant
■ High efficacy level
■ Suitable for accent or ambient lighting
■ Multiple CCT options available
■ Superior COLOR RENDERING INDEX (CRI)
■ Available in 24V
■ Dimmable with CORE Lighting dimmable drivers
■ Approved for closet / storage space installation
per NEC 410. 16(A)(3) and 410.16(C)(5)
INPUT VOLTAGE POWER CONSUMPTION LUMEN OUTPUT NO. OF LEDs BEAM ANGLE CRI DIMMING MAXIMUM RUN LENGTH FIELD CUTTABLE IP RATING LUMEN MAINTENANCE OPERATING TEMPERATURE BINNING CERTIFICATIONS DIMENSIONS | 24V DC 7W per foot 784 Lumens per foot 72 LEDs per foot 120º 95+ MLV, ELV, 0-10 and TRIAC 20 Feet Every 1.3 in IP54 dry location (indoor) 50,000 hrs. -40ºF(-40ºC)~+140ºF(+60ºC) 1.5 Step Macadam Elipse UL listed, TITLE 24 JA8 0.47” x 0.06 (width x height) |
