LSMW60 is an outdoor, wet-rated, dimmable LED strip capable of delivering 500 lumens of light output per Ft. Rated to last 50,000 hours making it an excellent replacement for halogen lighting. Its innovative low profile design makes it is suitable for use in cove lighting, under cabinets, architectural and aesthetic enhancements.
■ 6.0W per Foot
■ 500+ Lumens
■ 90+ CRI
■ California TITLE 24, JA8 compliant
■ 16 Feet Maximum Run Length
■ Field cuttable
■ Ideal for accent and ambient lighting
■ Multiple CCT options available
■ UL Listed
■ Dimamble with CORE dimmable drivers
■ Approved for closet / storage space installation per NEC 410. 16(A)(3) and 410.16(C)(5)
24V DC
6W per foot
500+ Lumens per foot
72 LEDs per foot
120º beam spread
90+ CRI
MLV, ELV, 0-10V and TRIAC
Maximum run length: 16 Feet
Cuttable every 1.0 in (25.4MM)
IP65 wet location (outdoor)
50,000 hrs. rated lifespan
Operating temp: -40ºF(-40ºC)~+140ºF(+60ºC)
1.5 Step Macadam Elipse
UL listed

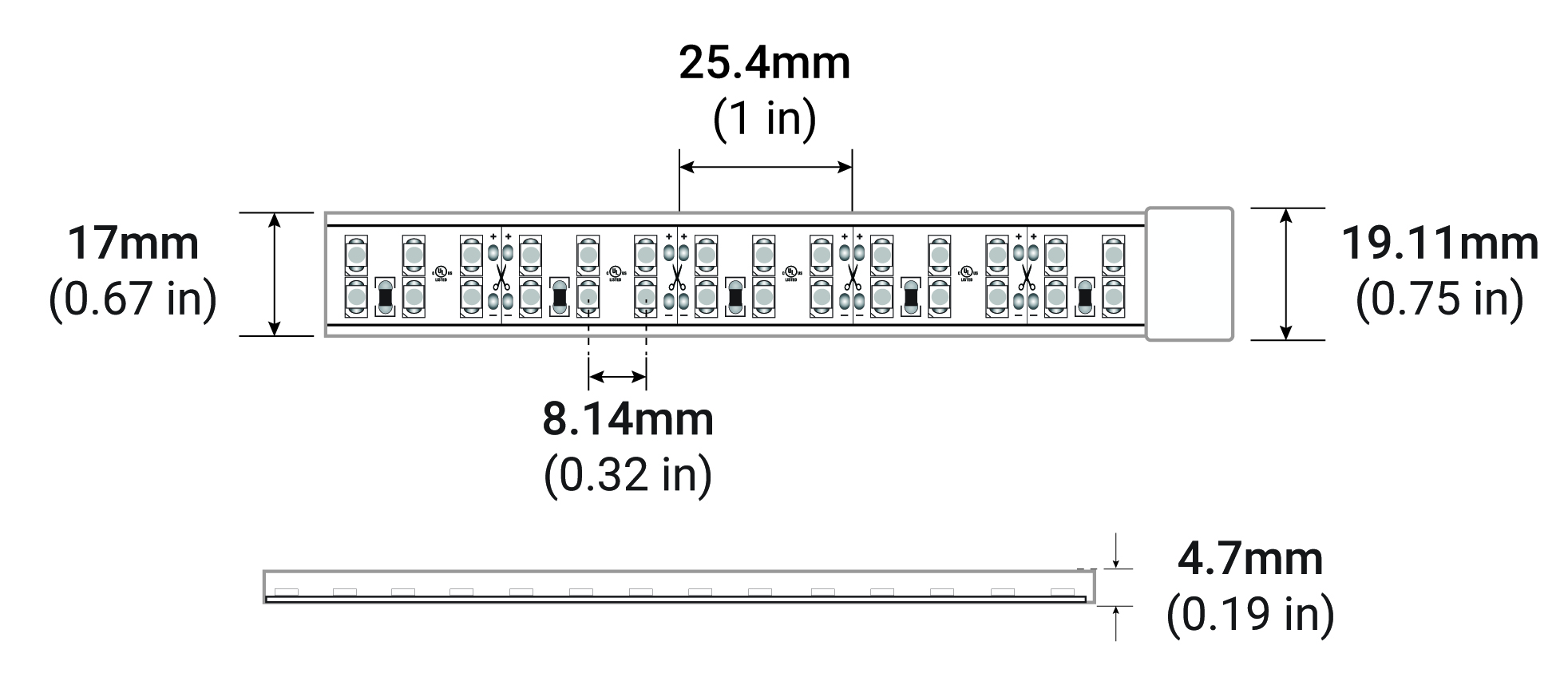

0.67” x 0.20” (width x height)
LSMW60 is an outdoor, wet-rated, dimmable LED strip capable of delivering 500 lumens of light output per Ft. Rated to last 50,000 hours making it an excellent replacement for halogen lighting. Its innovative low profile design makes it is suitable for use in cove lighting, under cabinets, architectural and aesthetic enhancements.
■ 6.0W per Foot
■ 500+ Lumens
■ 90+ CRI
■ California TITLE 24, JA8 compliant
■ 16 Feet Maximum Run Length
■ Field cuttable
■ Ideal for accent and ambient lighting
■ Multiple CCT options available
■ UL Listed
■ Dimamble with CORE dimmable drivers
■ Approved for closet / storage space installation per NEC 410. 16(A)(3) and 410.16(C)(5)
INPUT VOLTAGE POWER CONSUMPTION LUMEN OUTPUT NO. OF LEDs BEAM ANGLE CRI DIMMING MAXIMUM RUN LENGTH FIELD CUTTABLE IP RATING LUMEN MAINTENANCE OPERATING TEMPERATURE BINNING CERTIFICATIONS DIMENSIONS | 24V DC 6W per foot 500+ Lumens per foot 72 LEDs per foot 120º 90+ MLV, ELV, 0-10V and TRIAC 16 Feet Every 1.0 in (25.4MM) IP65 wet location (outdoor) 50,000 hrs. -40ºF(-40ºC)~+140ºF(+60ºC) 1.5 Step Macadam Elipse UL listed 0.67” x 0.20” (width x height) |
